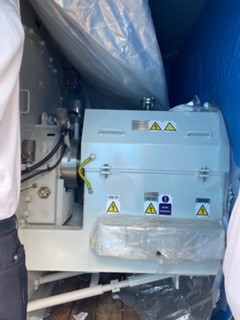

GE TURBO EXPANDER GENERATOR
50HZ 11000V 18,600KVA 2014 BRAND NEW NO USE
GE SYNCLONOUS AC GENERATOR FRAME TA160E4
2014 50HZ 1500RPM 11000V
NUOVO PIGNONE,ITALY
TYPE EG1002 TWO TURBINE
EXS-001 POWER : 5,780KW EG-002 POWER : 6913KW
RATED SPEED 10180 RPM 4950RPM
TRIP SPEED 12929 RPM 6287RPM
IST CRITCAL SPEED 5900RPM 2630 RPM
EXPANDER CASING DESIGN PRESS: 48BAR(G)） 38BAR(G)
MAX EXPANDER CASING DESIGN TEMP 270DEG.C 250 DEG.C
MIN. EXPANDER CASING DESIGN TEMP 18 DEG.C 18 DEG.C
HYDR0STATIC PRESS EXPANDER CASING 57 BAR(G) 72 BAR(G)
FUEL OIL AND GAS
WITH CONTROL UNIT, AIR COOLED CONDENSER, CONDESATE ACCUMRATOR,
CYCLOP TAME PUMP, SUPERHEATER, EVAPORATOR AND RECUPERATOR
ALL EEQUIPMENTS IN WOODEN CRATE.
PRICE USD1.8 MILLON FOB

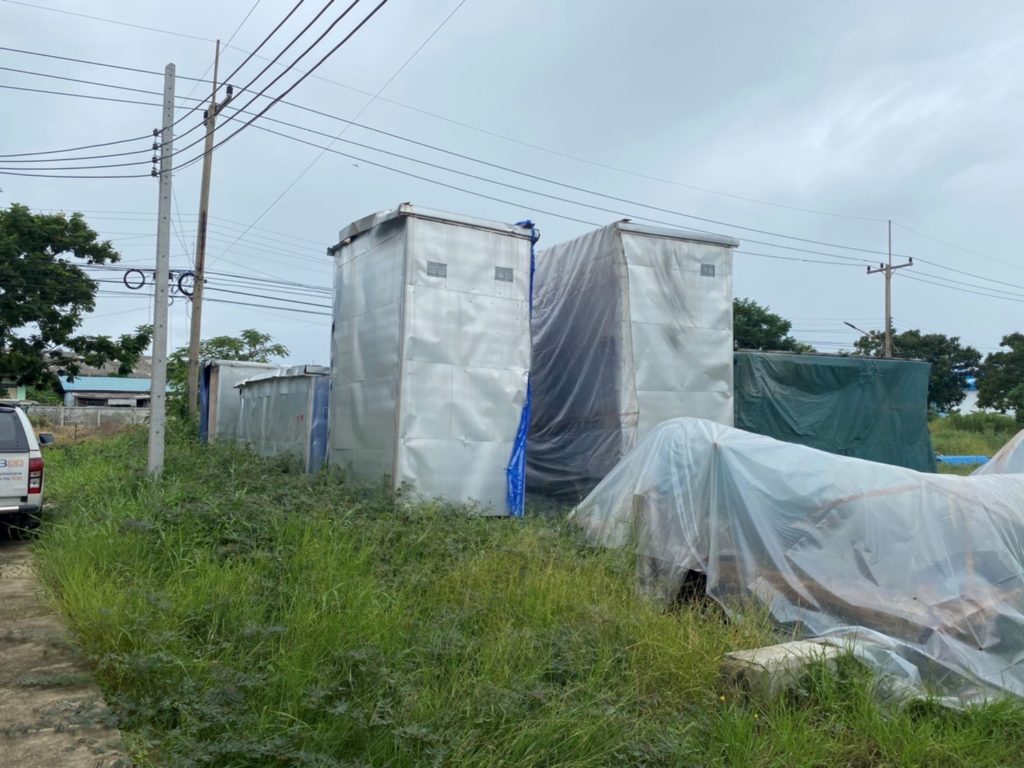

STORAGE

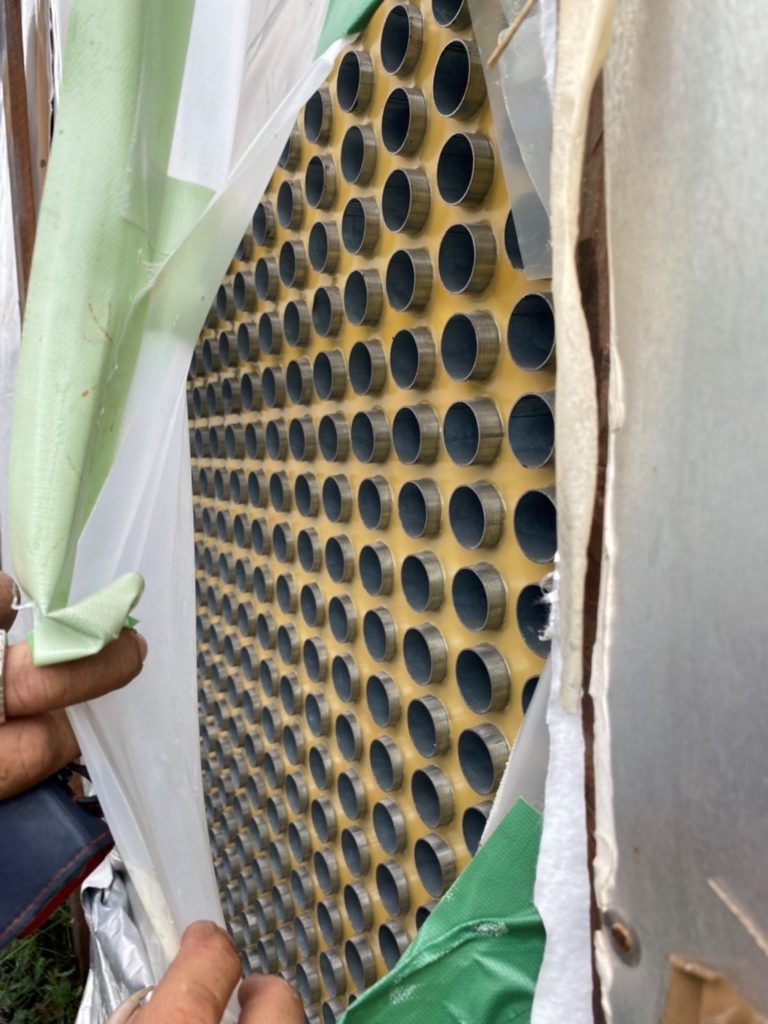

AIR CONDENSER

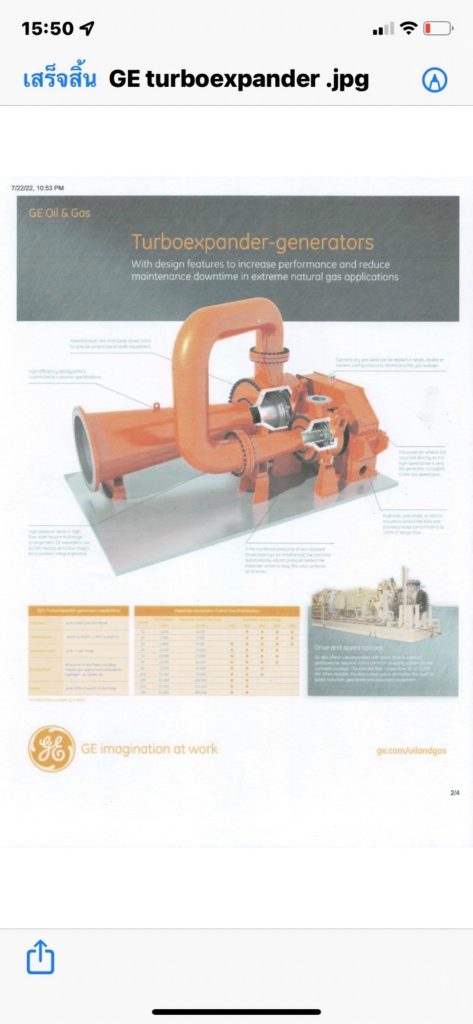

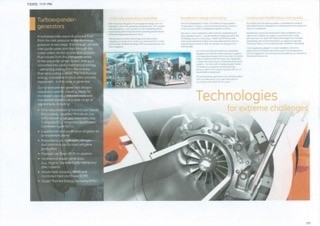

CATALOG
GE ALTANATOR

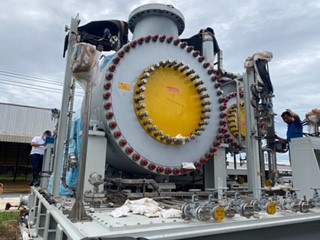

TURBO EXPANDER
