FOR SALE WASTE PLASTIC COVERSION MACHINE FOR FUEL OIL MAKING
MODEL YAGI SANGYO, MODEL OASIS -2000 2010 model
PRODUCTION CAPACITY ABT. 4.8TON/20 HOURS
(ONE BATCH 150 – 200KGS/HOUR, RESUDE REMOVING TIME: ONE HOUR/BATCH)
POWER : 200-220V 3 PHASE.
CONTROL UNIT: TOUCHT PANEL
MACHINE SIZE L 7,525 X W 5,000 X H 4.510M
SCOPE SUPPLY:
1. DRY CARBONIZATION KETTLE 2 UNITS(ONE UNIT SAPRE)
2. DRY CARBONIZATION KETTLE FURNACE
3. CATALYST TOWER
4. CODENSATION TOWER (FIRST AND SECOND STAGE)
5. OIL/WATER SEPARATION TANK (FIRST AND SECOND STAGE)
6. GAS CLEANING TANK
7. COOLING TOWER
8. CONTROL PANEL
9. OIL SERVICE TANK
10. KETTLE REVERSING UNIT
11. KETTLE TABLE
DETAILS:
1.FUEL KETTLE 2 UNITS
SIZE: 1600MM DIA X 1000MM HEIGHT STAINLESS AISI316 2 KETTLES(ONE UNIT FOR SPARE)
IMPUT PORT : 450 X 500MM

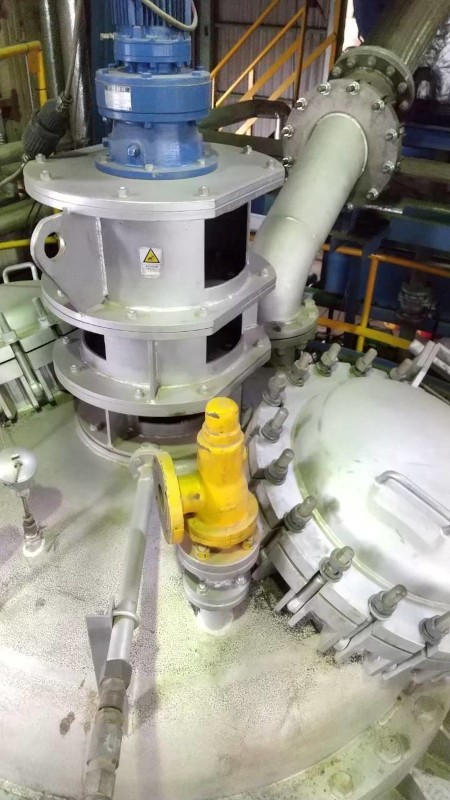

MIXING MOTOR 0.4KW, 11 RPM
2.HEATING TO THERMOLYSIS PYROLYZE KETTLE : SIZE 2070 L X 2070W X 1736 H 1 UNIT
MATERIAL: STEEL SS400
INSULLATION: BODY WALL 60 DEG.C
PIER : ONE SIDE OPEN/CLOSE TYPE
3. DRY DISTILLATION GAS MODIFICATION : 800 L X 300MM DIA 3 UNIT
MATERIAL STEE; SS400
HEATING UNIT: BELT HEATER 2KW X 2 PCS
INSULATION : INSULATION MORTAR
4. DRY DISTILLATION GAS CONVERSION TOWER TO MAKE OIL: 1 UNITS TWO LINE
SIZE: 2500 L X 1200 X 9 T
STEEL SS400
COOLING WATER FLOW: 0.5M3
5. SEPARATION FOR HYDROCARBON OIL AND WATER
FIRST: 1200L X 1100W X 50
SECOND :1200L X 1460W X 50
SATEEL SS400
7. COOLING TOWER : SHINWA 2 UNITS
FOR COOLING OF GAS CONVERTION TOWER
COOLING WATER COOLING CALORIES: 117,000 KAL/H
FOR SERCURATION: 30 TON
SIZE : 1500 DIA X 2290H 1.5KW
11.KETTLE. TABLE SIZE: 1600 L X 1600X 100 STEEL SS400
IF ANY ONE INTERESTED IN THIS PLANT, PLS CONTACT BY OUR E-MAIL:
info@papillon-co.ltd.com

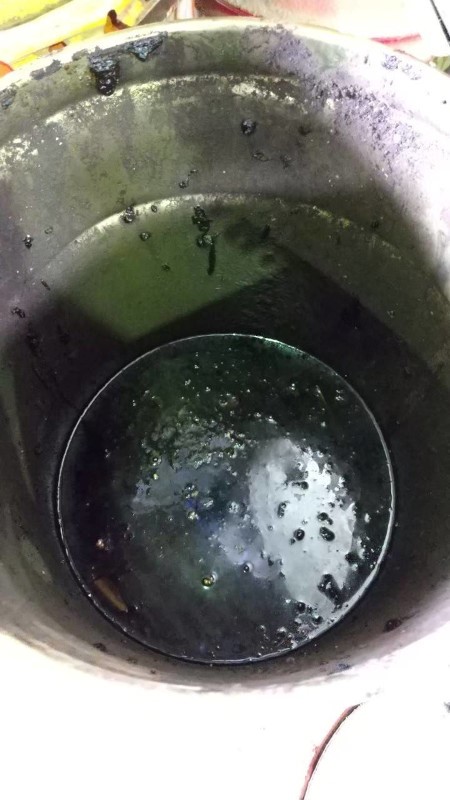

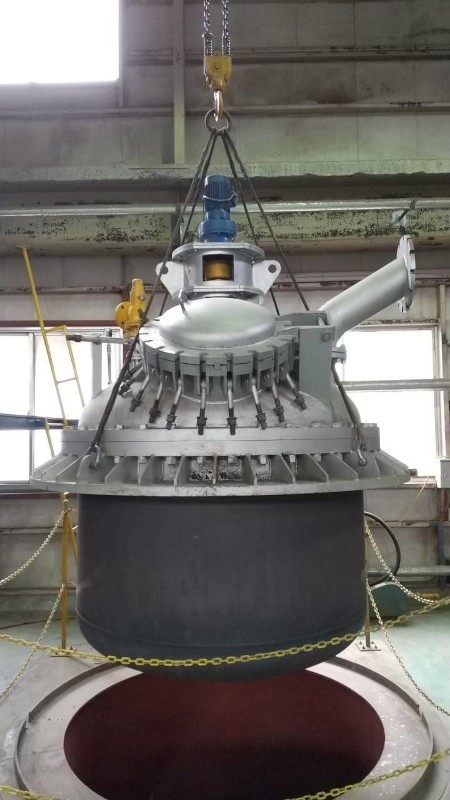

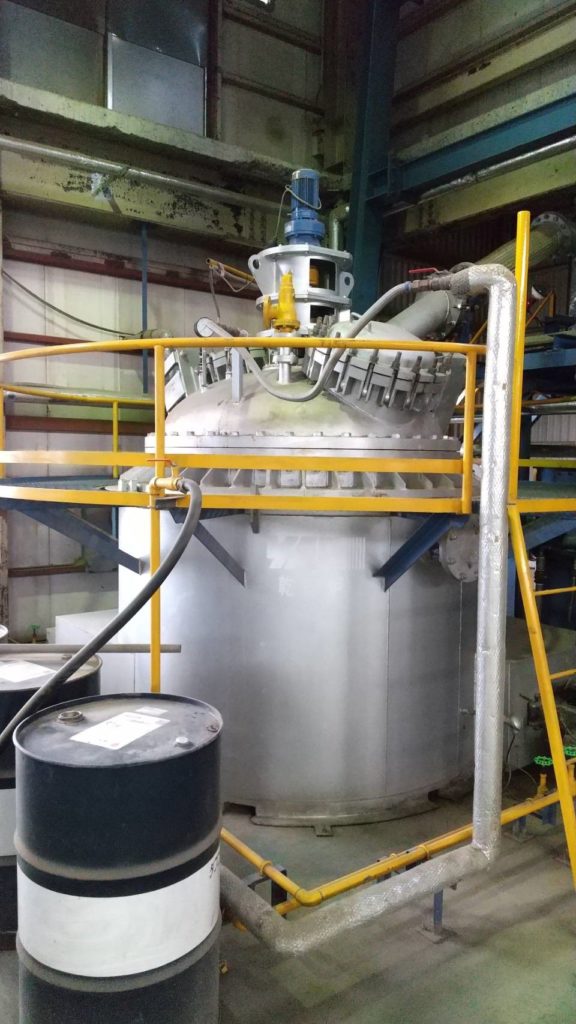

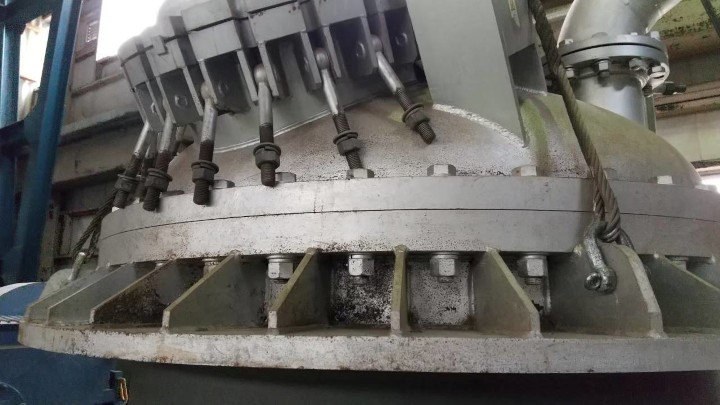

CARBONIZATION KETTLE (ONE UNIT SPARE)

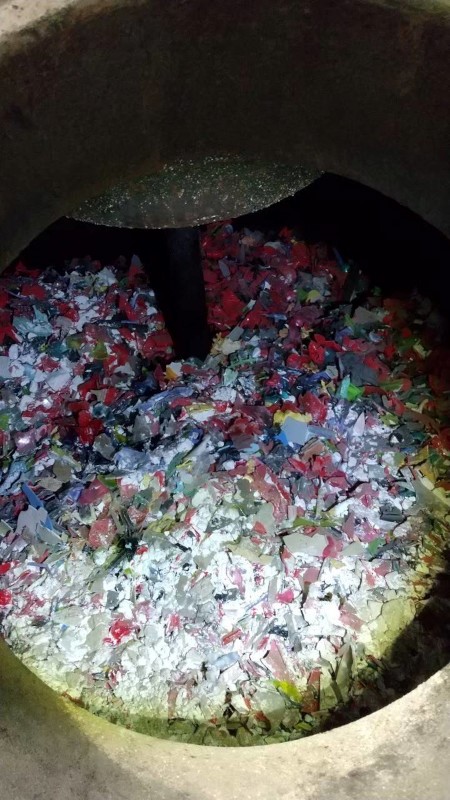

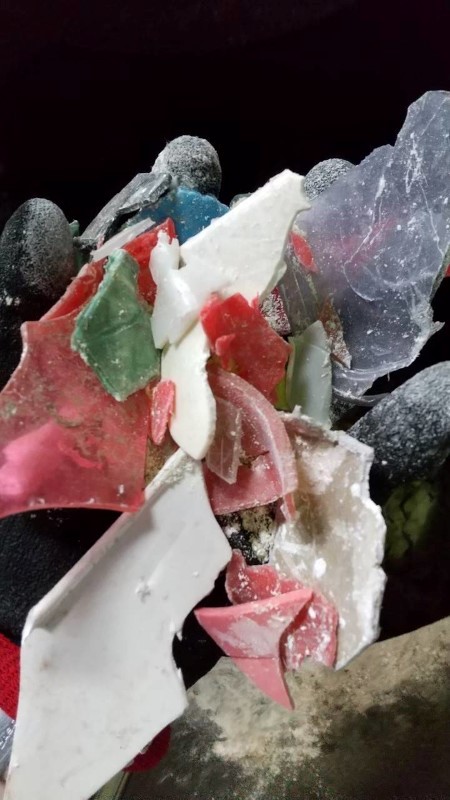

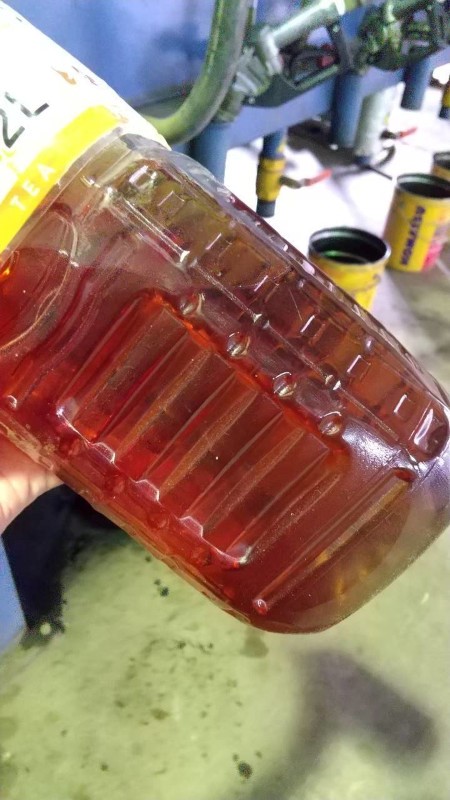

WASTE PLASTIC HYDRO CARBON OIL MAKING OILS SAMPLE

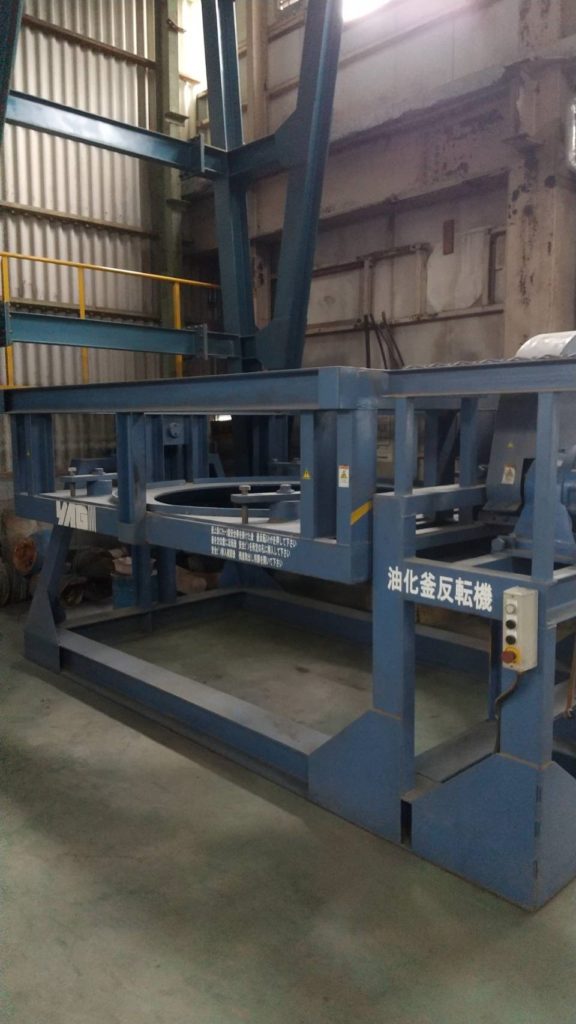

FURNACE REVERSE UNIT COOLING TANK &

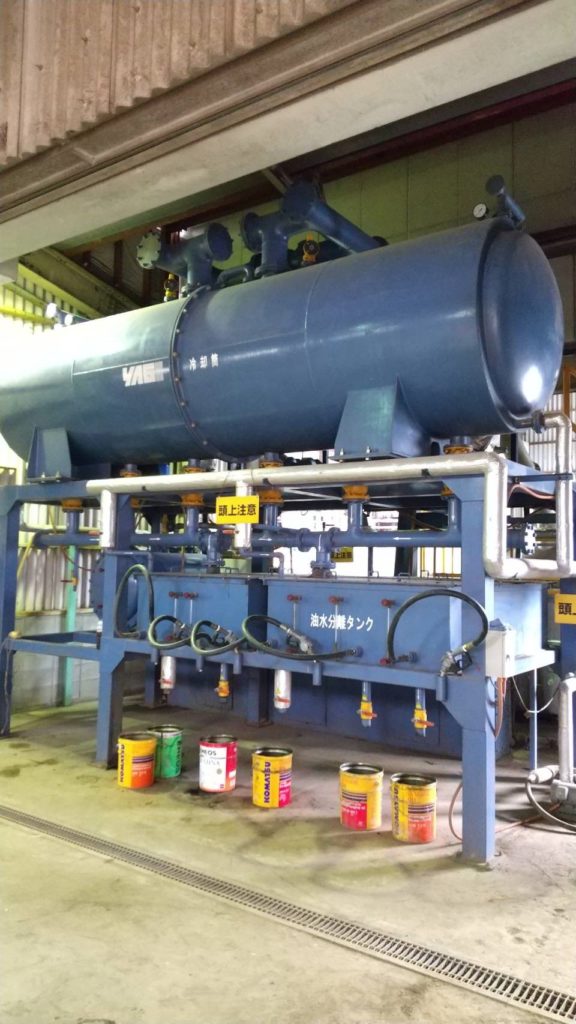

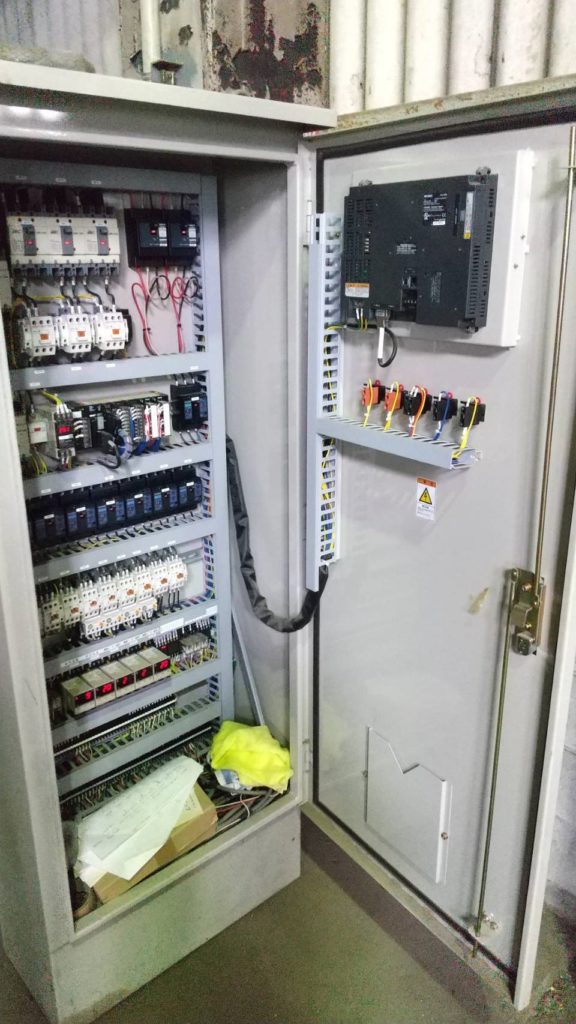

OIL/WATER SEPARATION UNIT CONTROL UNIT

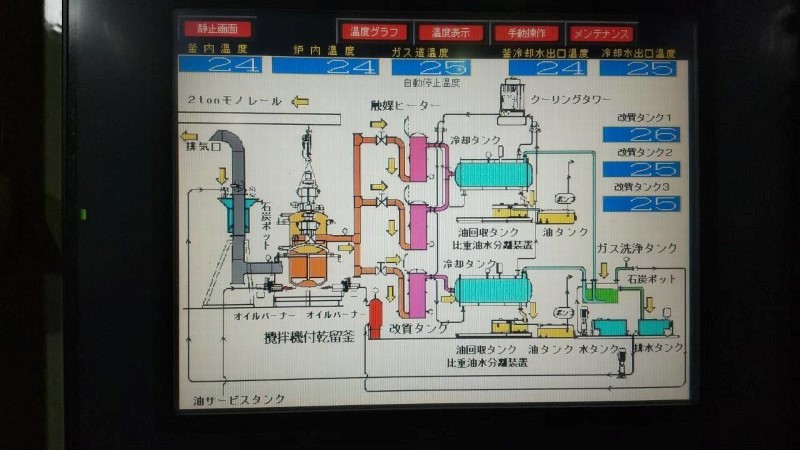

FLOW CHART
COOLING WATER
